Weaving (Loom Data)

Web Based Monitoring System is the measuring and recording of physical or electrical parameters over a period of time. Some applications require only a single measurement, while others may require multiple channels and multiple types of measurements. Web Based Monitoring System is available with various channel configurations: single-channel devices, multichannel devices, and modular devices with a mixture of measurement types. It can measure different types of signals and sensors including the following Production (Kilo picks, CMPX), Stoppage (Warp, Weft, Others), Automatic & Manual Roll Doff, Line Voltage, Phase Voltage, Current, Kilo Watts, Frequency, Power Factor, KWH, Air Flow with Consumption, Water Flow with Consumption, Humidity and Temperature

Download Brochure

Block Diagram for Web Based Online Monitoring System

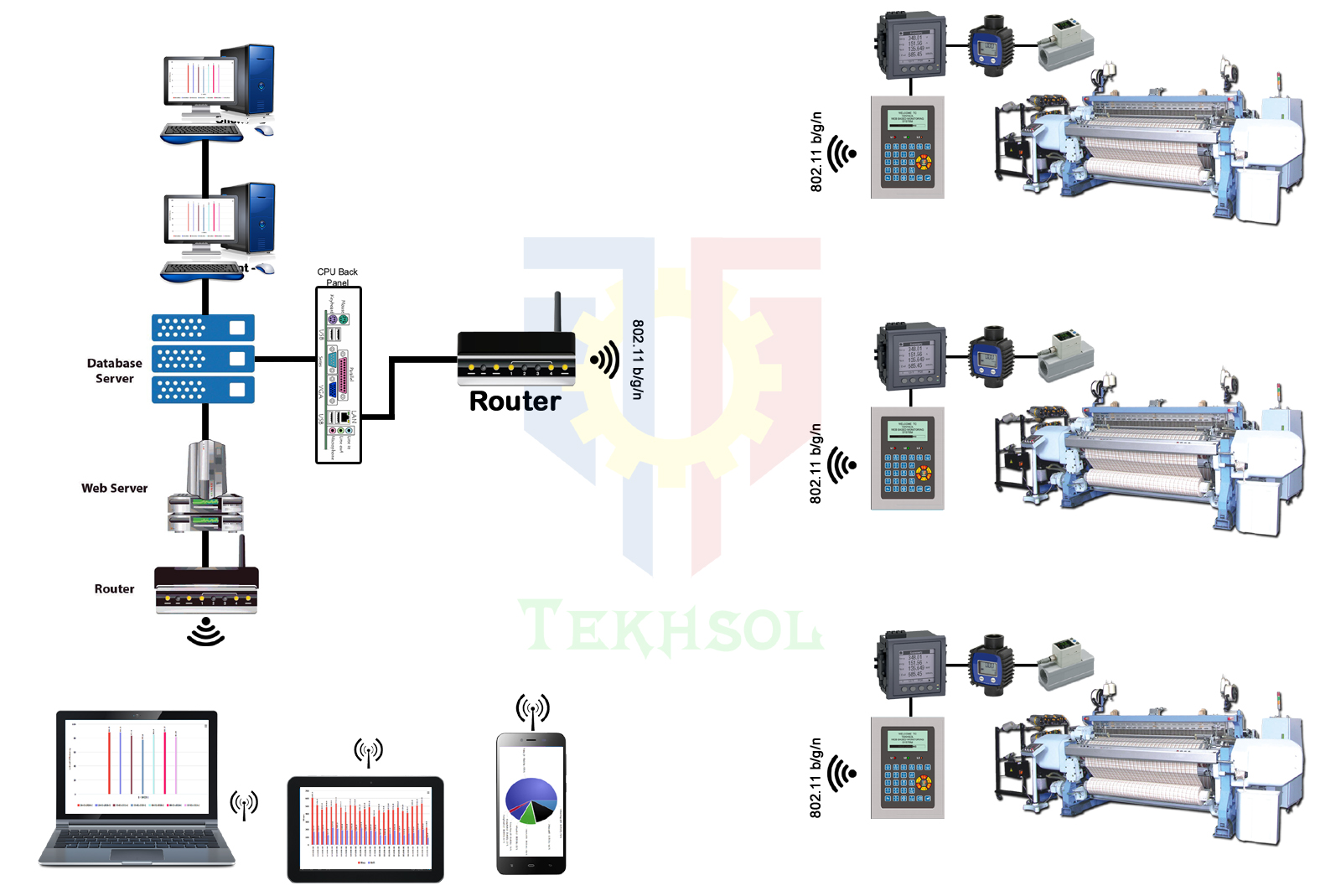

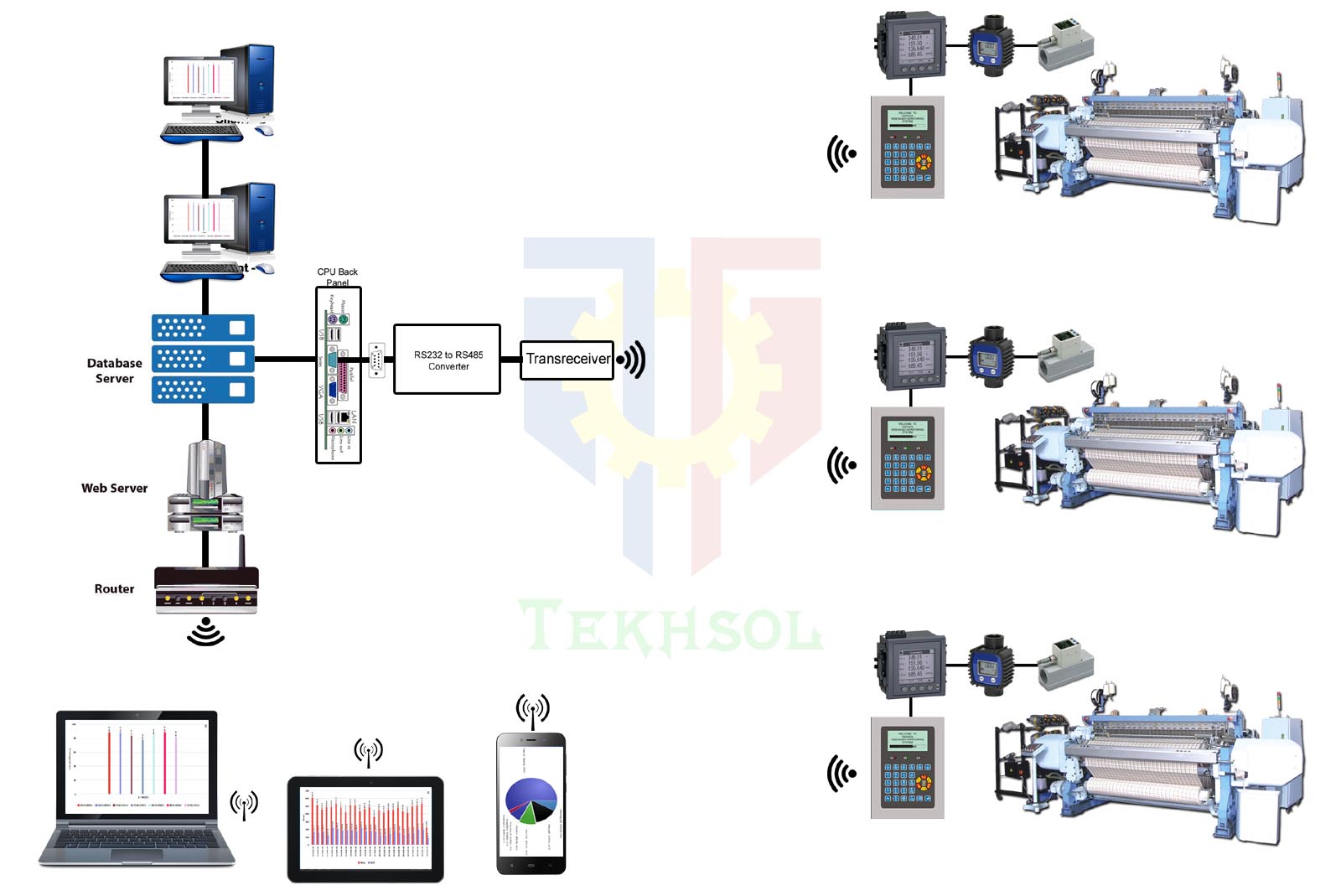

Block Diagram(Wireless) - Web Based Online Monitoring System for Weaving

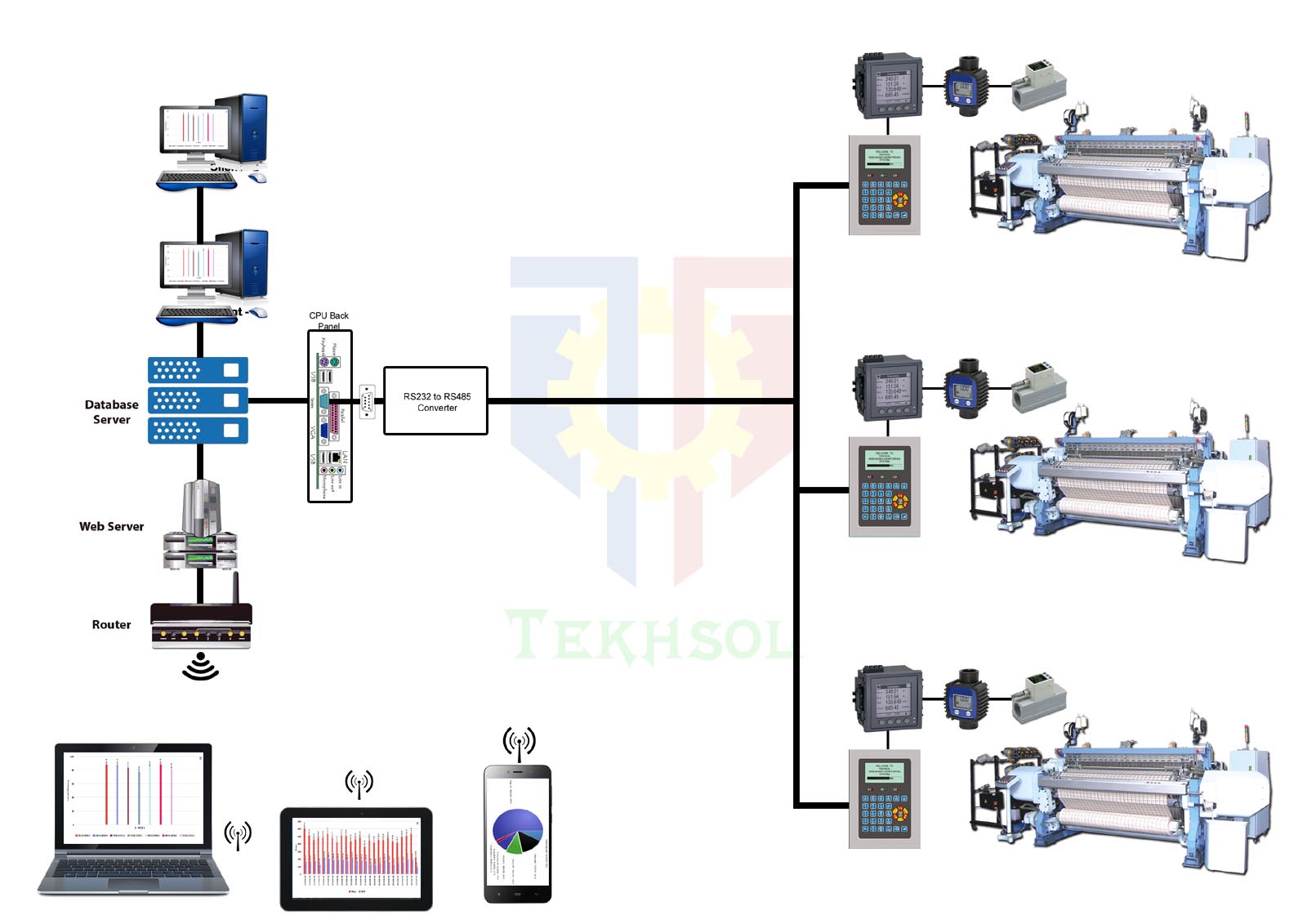

Block Diagram for Web Based Monitoring System (Weaving - Wired)

Advantage of Web Based Monitoring System

This presents the following advantages over traditional stand-alone Web Based Monitoring System

Production Details

Integrated All information about Machines at one Server

Clarify Weak Areas	Machine Running Time

Actual Efficiency	Production Efficiency

Installed Efficiency	Utilization Efficiency

Instantaneous RPM and Average RPM	Production in Kilo Picks and CMPX

Various Stop Time	Warp Stop with Duration

Minutes / Warp	Warp / Hour

Weft Stop with Duration	Minutes / Weft

Weft / Hour	Other Stop with Duration

Minutes / Other	Other / Hour

Short Stops with Duration	Minutes / Short Stops

Short Stops / Hour

Run Suppress Pick Concept

Pick / Runningtime Based Start Attempt

Start Attempt For Warp Stop with Duration	Minutes / Start Attempt For Warp

Start Attempt For Warp / Hour	Start Attempt For Weft Stop with Duration

Minutes / Start Attempt For Weft	Start Attempt For Weft / Hour

Start Attempt For Others Stop with Duration	Minutes / Start Attempt For Others

Start Attempt For Others / Hour	Start Attempt For Short Stops with Duration

Minutes / Start Attempt For Short Stops	Start Attempt For Short Stops / Hour

Long Stops with Duration like Knotting, Gaiting and etc

Design Details	Beam Details

Stop Code Details	Operator Details

Technician Details	Supervisor Details

Operator Group Details	Technician Group Details

Supervisor Group Details

Hour Wise Production(Kilo Picks and CMPX) and Stop(Warp,Weft and Others) Report with Analysis

Instant alerts for Order Status, Stoppages, Roll-Doff, Beam Runout, etc..

Production Planning and Order status Reports	Automatic and Manual Roll Doff

Roll Doff Alerts & Reports	Beam Planning

Beam Analysis	Beam Run out

Automatic and Manual Employee Planning and Allocation	Employee Analysis

Dashboard For Immediate Response	Various Types Of Charts Like Line, Bar and Pie

Monitoring Screen For Production, Stoppage, RPM and Operator Details

Hour / Shift / Day wise /From To Production and Stoppage Reports

Monthwise Report For Production and Stoppage

Comparision Report For Any TWO Parameters

Units/Kgs

Usage Of Bar Code

Design Details	Beam Details	Stop Code Details

Operator Details	Technician Details	Supervisor Details

Operator Group Details	Technician Group Details	Supervisor Group Details

Multilayer Lamp

To indicate Warp Stop	Weft Stop	Others Stop

Roll-Doff Status	Beam Runout Status

Energy Details

Line Voltage(R Phase,Y Phase, B Phase)

Phase Voltage (RY Phase,YB Phase,BR Phase)

Current (R Phase,Y Phase, B Phase,Total)

Power Factor(R Phase,Y Phase, B Phase, Average - Instantaneous)

Watts (R Phase,Y Phase, B Phase ,Total)

Frequency

VAR (R Phase,Y Phase, B Phase ,Total)

VA (R Phase,Y Phase, B Phase ,Total)

KWH

Air Flow Details

Running CFM	Stopped CFM	Consumed CFM

Water Flow Details

Running LPM	Stopped LPM	Consumed LPM

Humidity

Minimum Humidity Value(Rh)	Maximum Humidity Value(Rh)	Live Humidity Value(Rh)

Temperature

Minimum Temperature Value(Celsius)	Maximum Temperature Value(Celsius)	Live Temperature Value(Celsius)

Features

Web Based Monitoring System is a microprocessor based real time on-line Production Monitoring System. It acquires data directly from the machines by means of signals. Web Based Monitoring System automates the production and stoppages data directly to computer for weaving departments.
Warp, Weft, Other and Fourth stoppages are directly recorded to computer as Warp, Weft, Others and Fourth stoppage. This greatly helps the management to control the stoppage variation and thereby to improve productivity.
For every stoppage, Web Based Monitoring System records the start time and end time of the stoppage against the machine, shift and date. The user is allowed to change a suitable reason for such a stoppage from the existing stop reasons at the end of a shift or latter on. Also, the user is allowed to eliminate certain type of stoppages for which the duration is less than out of production time so and which are not considered while production calculation. This greatly improve the accuracy in production calculation.
Web Based Monitoring System information with respect to RPM, Production, Efficiency and Stoppages are available to the user up to the minute.
User friendly Web based Software. User can monitor the industry anywhere from the world through Internet. Integrated information of all Machines at one place. Monitoring Screen to show current month, Previous Shift, Previous Day and current shift status with easily understandable user friendly GUI.
Dash board for cumulative display of collected data in a single page. Running and Stoppage machines with their percentage. Efficiency wise machines counting with percentage. Instantaneous and Running shift efficiency and production data in the dash board view.
Various Reports on Production, Stoppage & Efficiency based on selected criteria. Beam Run out and Beam Analysis report.
Each detailed report will say the working machine's for the day performance along with the up to date performance is the special quality of Web Based Monitoring System software.
Performance of any Machine, Design, Beam, Employee or Group can be analyzed at any point of time for any chosen period of working. For any chosen period can be analyzed.
Design Changes for completed shifts with high level authentication.
Real time and past data comparison on Machine, Design, Operator, Technician, Supervisor, Operator Group, Technician Group, Supervisor Group, Warp Supplier, Weft Supplier, Sizing Supplier, Buyer, Order etc.,.
Periodical Break analysis and Efficiency Graphs to improve Production and Quality.
Production Planning, Beam Planning and Order status Reports.
Projected Production information to improve current shift Production & Efficiency.
Our Web Based Monitoring System software allows the user to input worker's planning and existing men allocation and details.
Total working performance of Mills for last shift would be immediately available to the current shift Executives.
Total working performance of the Mills for a day would be immediately available after the end of the day to the Top Executives. Month end Production report and stoppages analysis reports are immediately available after the month end without any manual preparation.
There is no manual calculation and integration is required at any point of time for any kind of report.
As the production parameters are directly recorded from the machines, the special efforts of the system can be realized and the time reduction in the clerical work can be understood.
Web Based Monitoring System software is also allows direct input for production and other working details. Which are not censored by Web Based Monitoring System. This helps the management to have total production monitoring through computer. The management can realize the completeness in computerizing the production activity.
In most of the reports Mills standard has been compared.
More than 200 different kinds of reports are available. Each of these reports are carefully designed and are very meaningful to control the production routines in all respects.
Graphical representation of data with respect to productivity and stoppage are also available for quick and easy understanding of the Mills performance.

Additional Features

ERP Interface.
SMS Alerts (Optional).
Provision to send reports by e-mail automatically (Optional).
Provision to connect big LED / LCD screens (Optional).
Provision to show Running Display.

Sample Screen Shots

Real-Time Visualization

With a traditional stand-alone data logger, you must first record the data and then manually transfer it to a PC before you can import it into a spreadsheet program or other tool to graph and visualize the data.

Because a PC-based data logger is always connected to the PC, live measurements are displayed on the PC monitor in real time and you can see results instantly. You can use programming environments, such as Web Based Software, to build custom user interfaces for controlling your measurement device and displaying the results. Creating a user interface with Web Based Software is as simple as dragging and dropping controls and graphs on the user interface.

Inline Analysis

Data analysis with a traditional stand-alone data logger is typically performed offline only after the data has been transferred to the PC.

Using a PC-based data logger, you can take advantage of multicore processors and increasingly available RAM in the PC to perform signal processing and analysis on your data as you acquire it. Web Based Software includes many common math and signal processing functions that use configuration wizards and make it easy to add analysis to your measurements.

User-Defined Functionality

With a traditional stand-alone data logger, you are generally limited to hardware and software functionality defined by the vendor. These functions are good for accomplishing general-purpose tasks, but they may not help you meet your unique application requirements. For example, you may want to log data only under certain conditions or generate custom alarms that aren't built into the data logger.

PC-based data loggers are software-defined instruments. This means the functionality of the device is defined by the software, and you can customize the software to meet your specific application needs. Using Web Based Software, you can easily build functionality for custom alarms, logging conditions, report generation, and signal analysis. You can log data to virtually any file format for importing into other tools and sharing data with others.

Terabytes of Data Storage

Data storage is an important component of a data logger. You can log only as much data as you can store in your data logger. Traditional stand-alone data loggers are limited by the amount of memory built into the device.

Because the PC is actually a part of a PC-based data logger, you are limited only by the amount of hard drive space on the PC. Today, it's not uncommon to find a PC hard drive with terabyte capacity that provides ample space for your current measurements as well as permanent storage space.

Network Connectivity

For applications that require long-term monitoring over days or weeks, you may have difficulty continually checking results. Remote monitoring is useful because you can see results from a remote location. Using a PC-based data logger, you can take advantage of the PC's network connectivity to transmit results over a network for remote viewing. With Web Based Software, you can create custom alarm conditions that send e-mails or even design a Web service that you can visualize over a Web-based application.
